13 ft Octagon Orion Cantilever by Shademaker
Intended for most commercial settings, the Orion is engineered with uncompromising strength and designed with minimalistic elegance. Featuring commercial grade stainless steel cables and a detachable canopy structure, allows for a durable and easy maintenance cantilever.
- Canopy structure easily detaches for storage
- 360° rotation with 8 locking positions

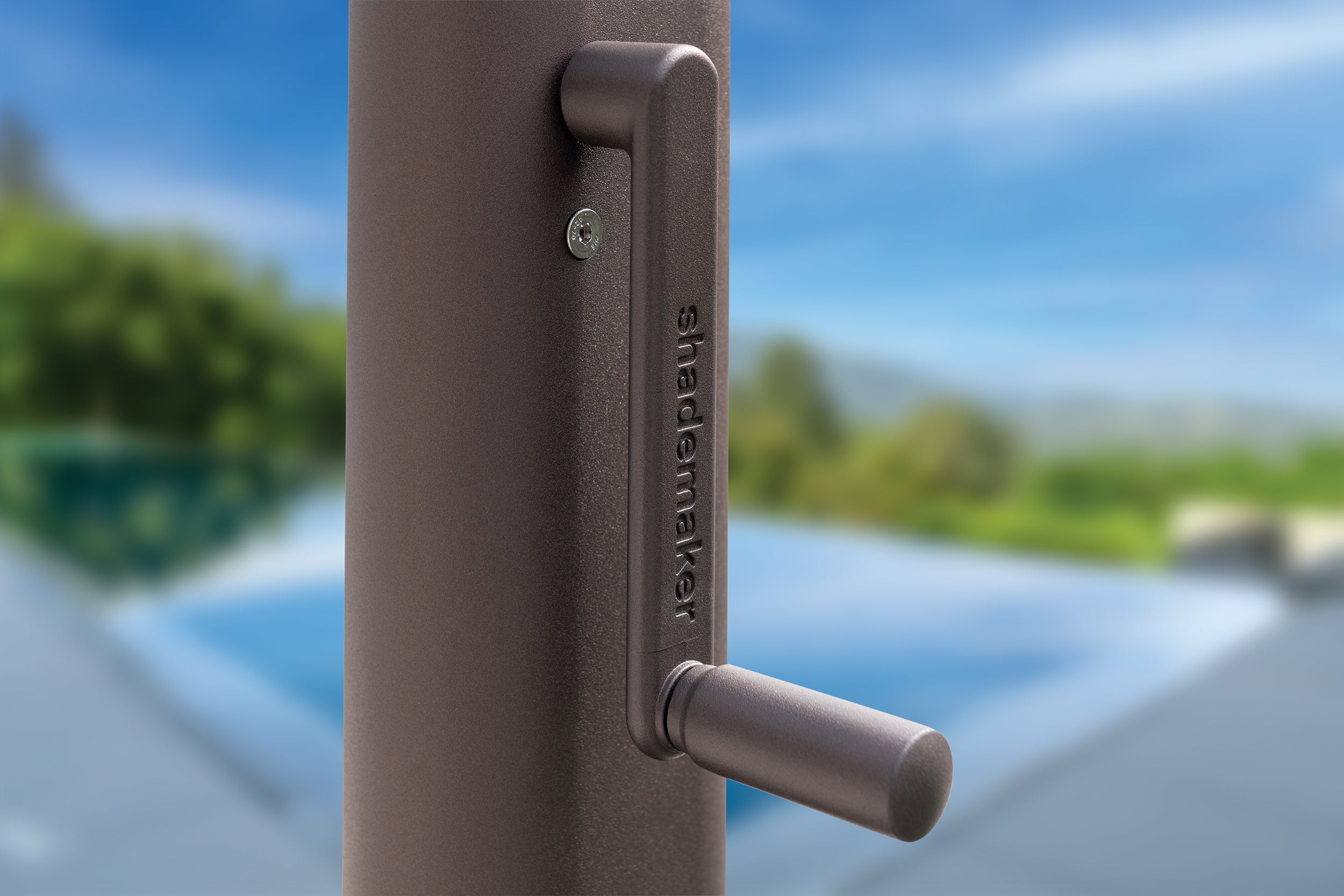

- Simple to operate crank lift system
- Removable crank handle
- Commercial grade stainless steel cable

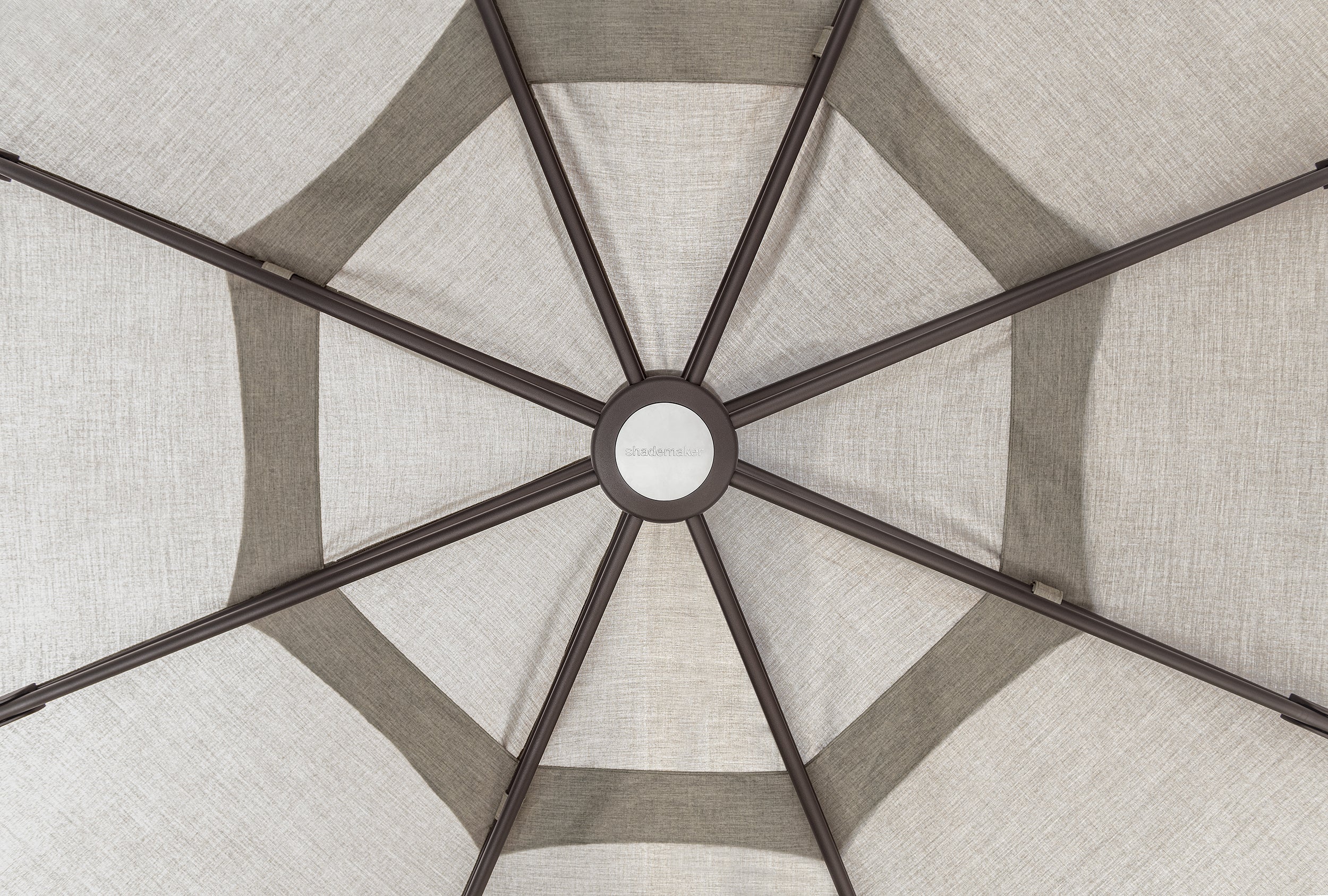

- Modernly designed aluminum hub and fittings
- Commercial grade canopy fasteners adding durability and design
- Galvanized internal mast stem
- Includes aluminum mast stem cover
- Includes high performance protective cover
- Coverage : 134 sq ft
- NOTE: Recommended minimum weight requirements for free-standing applications. *500 lbs or Permanent mount recommended.
Shademaker is proud to introduce a fully modern and elevated redesign of the entire collection. Keeping our signature profiles and incorporating enhanced materials and timeless design, we have crafted the next generation of Shademaker umbrellas.
Dimensions:
A Lower Hub HEIGHT(Open) 7’ ft | 2.1 m
B Rib End HEIGHT(Open) 7’ 1” ft | 2.2 m.
C Canopy LENGTH(Diagonal) 13’ 1” ft | 4.0 m
D Canopy WIDTH 12’ 1” ft | 3.7 m
E Overall HEIGHT (Open) 9’ ft | 2.7 m

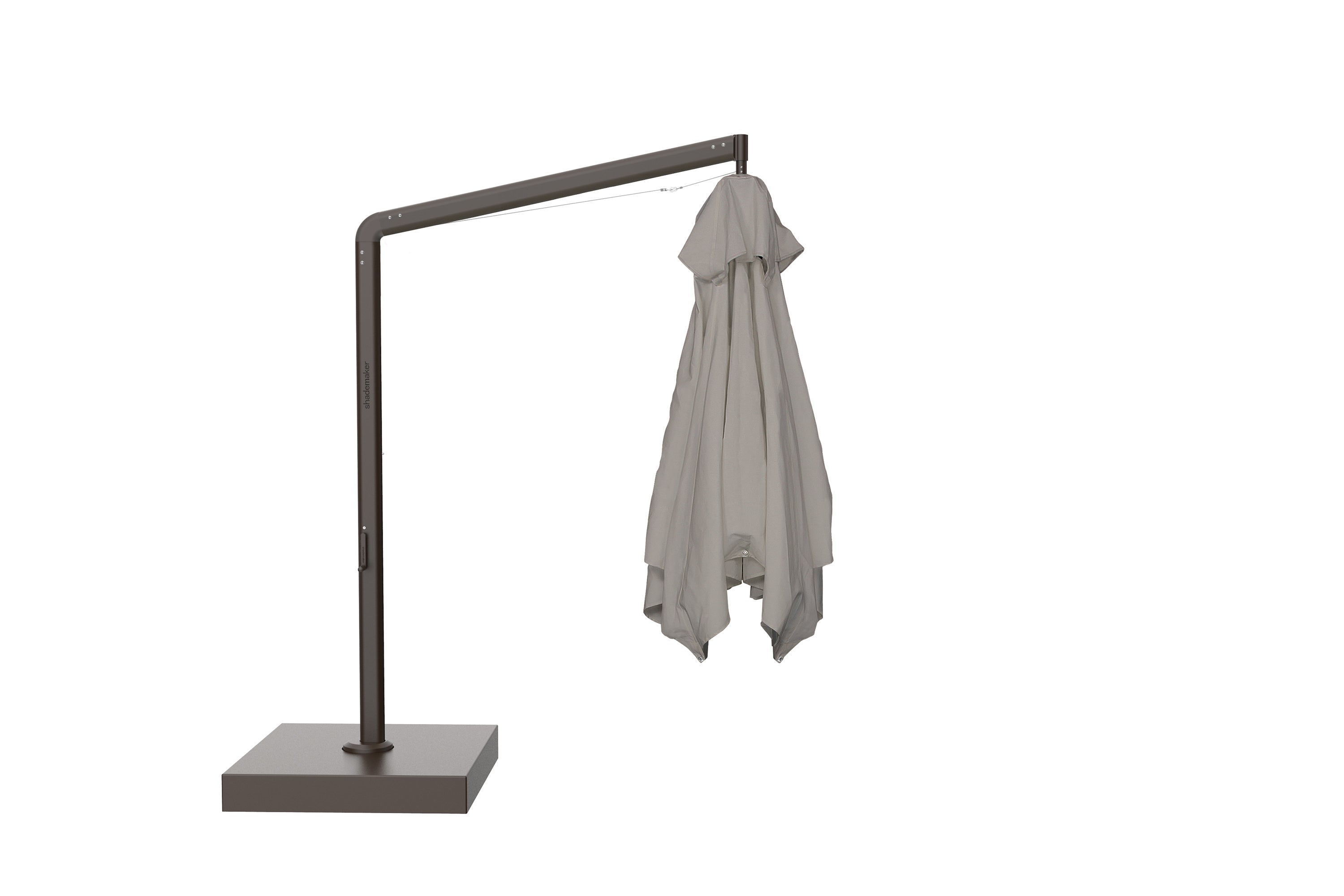

F Rib End HEIGHT(Closed) 1’ 10” ft | 0.6 m
G Mast End to Canopy Edge(Closed) 7’ 1” ft | 2.2 m
H Mast End to Canopy Edge(Open) 12’ 10” ft | 4.0 m
I HEIGHT to Crank Handle 3’ 1” ft | 0.9 m
J HEIGHT to Turning Handle 1’ 10” ft | 0.6 m
K Turning Handle WIDTH 9” in | 0.2 m
